CODIPRO India
Swivel Eyebolts
Every ring has its own individual traceability code for thorough tracking and is marked with a WLL (Working Load Limit) and the CODIPRO name.
SWIVEL EYE BOLT- SEB & FE.SEB
Metric thread: from M 8 to M 48 as standard;
For loads ranging from 0.40 t to 16.00 t .
360° pivot.
5:1 safety factor.
Available in both female and male version.

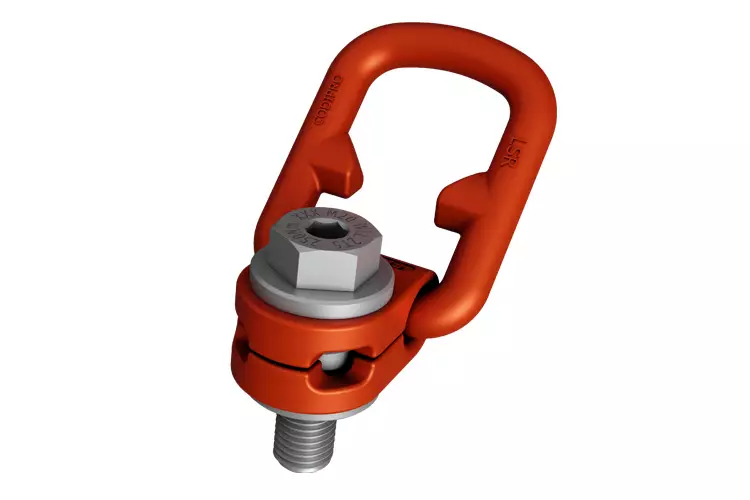

DOUBLE SWIVEL LIFTING RING - DSR & FE.DSR
Metric thread: from M 5 to M 42 as standard;
for loads ranging from 0.07 t to 9.00 t.
Double swivel ring with easy 180° and 360° rotation.
5:1 safety factor
Available in both female and male version.

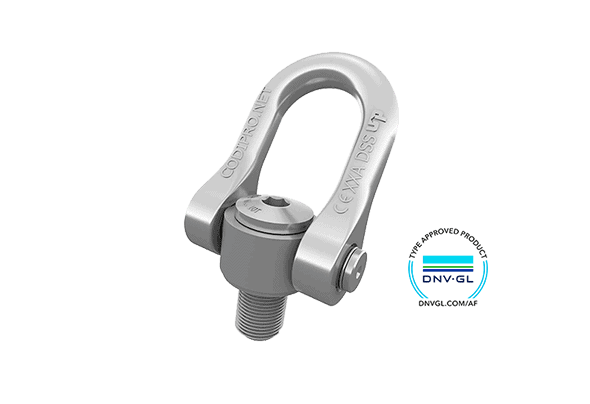

DOUBLE SWIVEL SHACKLE - DSS,FE.DSS,MEGA.DSS & GIGA.DSS
Metric thread: from M 24 to M 100 as standard;
for loads ranging from 4.50 t to 32.10 t.
Double swivel shackle with easy 180° and 360° rotation.
5:1 safety factor.
Available in both female and male version.
STAINLESS STEEL RINGS
Every ring has its own individual traceability code for thorough tracking and is marked with a WLL and the CODIPRO name.
STAINLESS STEEL SINGLE SWIVEL LIFTING RING SS.SEB
Available in both female and male version
316L stainless steel material
360° pivot, easy rotation
5:1 safety factor
Very short lead time
STAINLESS STEEL DOUBLE SWIVEL LIFTING RING SS.DSR – SS.FE.DSR
Available in both female and male version
316L stainless steel material
180° / 360° pivot, easy rotation
5:1 safety factor
Very short lead time
STAINLESS STEEL UNIVERSAL SWIVEL SHACKLE SS.DSS – SS.FE.DSS
Available in both female and male version
316L stainless steel material
180° /360° pivot, easy rotation
5:1 safety factor
Very short lead time
THE QUICK LIFT RING – QL.DSR
Quick Lift Ring - .QL.SDR
Standard metric and UNC threads available 8 to M 30
Safety factor5:1
Swivelling under load
360° rotation - 180° swivel
Complies with the Machinery
Directive2006/42/CE
Manufactured in compliance with
the EN 1677-1 norm
Individual traceability number
Quick Lift Ring in stainless steel SS.QL.SDR
Standard metric and UNC threads available:
M 8 to M 24
Safety factor 5:1
Stainless-steel 316L
Swivelling under load
360° rotation - 180° swivel
Complies with the Machinery
Directive 2006/42/CE
Manufactured in compliance with
the EN 1677-1 norm
Individual traceability number
SWIVEL LIFTING RING FOR OFFSHORE
CODIPRO is offering two separate “offshore” ranges which are covered by the “TAS00001ZG Type Approval” certificate
Every ring has its own individual traceability code for thorough tracking and is marked with a WLL (Working Load Limit) and the CODIPRO name.
DOUBLE SWIVEL LIFTING RING FOR OFFSHORE DSR-OS.DSR
Brand new swivel lifting rings.
Standard rings of with total zinc lamellar coating
5:1 safety factor
UNIVERSAL DOUBLE SWIVEL SHACKLE FOR OFFSHORE DSS-OS.DSS
Brand new swivel lifting rings.
Standard rings of with total zinc lamellar coating
5:1 safety factor
SOLUTIONS FOR SPECIFIC LIFTING APPLICATIONS
HOOK-TYPE LIFTING RING DSH
Metric thread: from M 8 to M 20
UNC thread: from UNC 5/16"-18 to UNC 3/4"-10
Safety factor 5
DOUBLE SWIVEL LIFTING POINT DSP
Smaller footprint compared to a DSR model
Easy to use in tiny space
Safety factor 5:1
FALL-PROOF ANCHOR POINTS
FALL-PROOF ANCHOR POINTS PE.SEB – SS.PE.SEB
PE.SEB anchor points are not lifting rings in the conventional sense. They are fixing points for fall protection equipment systems (PPE – Personal Protective Equipment).
PE.SEB rings can be permanently attached to a structure and thus be used as PPE.
ISO thread M 12 to M 24. Available in zinc-plated steel or stainless steel.
WELD-ON RINGS
WELD-ON RINGS WE.DSR – WE.DSS
Weld-on lifting rings help to provide a welded anchpor point for lifting and securing loads of up to 10 tons.Welding applications are strictly reserved for a welder who has the required qualifications based on EN 287-1.Working load limit: 2.00 to 10.00 t / 4,400 lbs à 22,000 lbs. Instruction leaflet available upon request
CENTRAL LIFTING POINT FOR THE MOULD INDUSTRY
CSS CENTRAL LIFTING RING
Single point lift, easy for injection mold lifting application
Working load limit: up to 55 t
User manual available upon request
