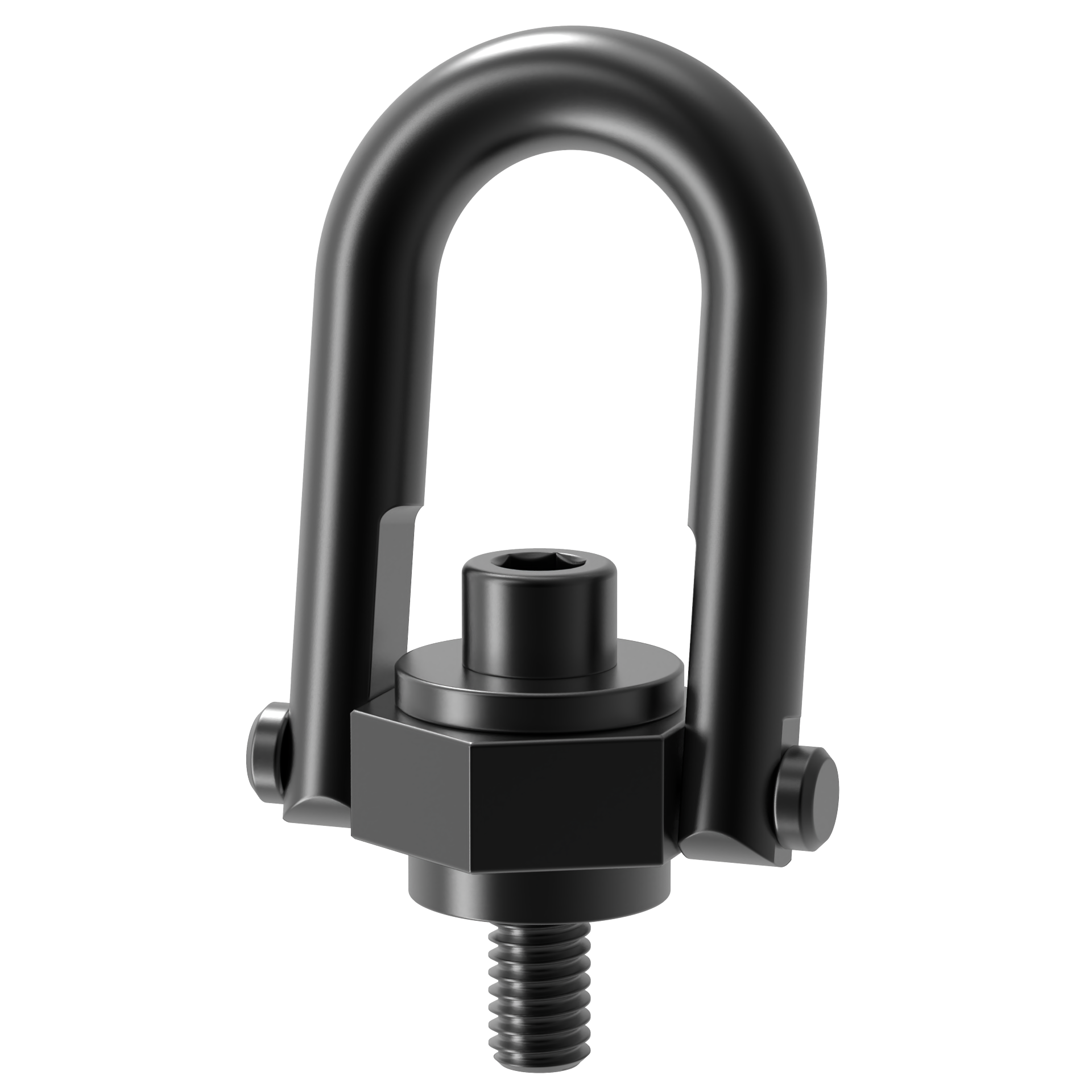

Swivel Hoist Rings (Standard Ring)
Swivel Hoist Rings (Standard Ring )
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.

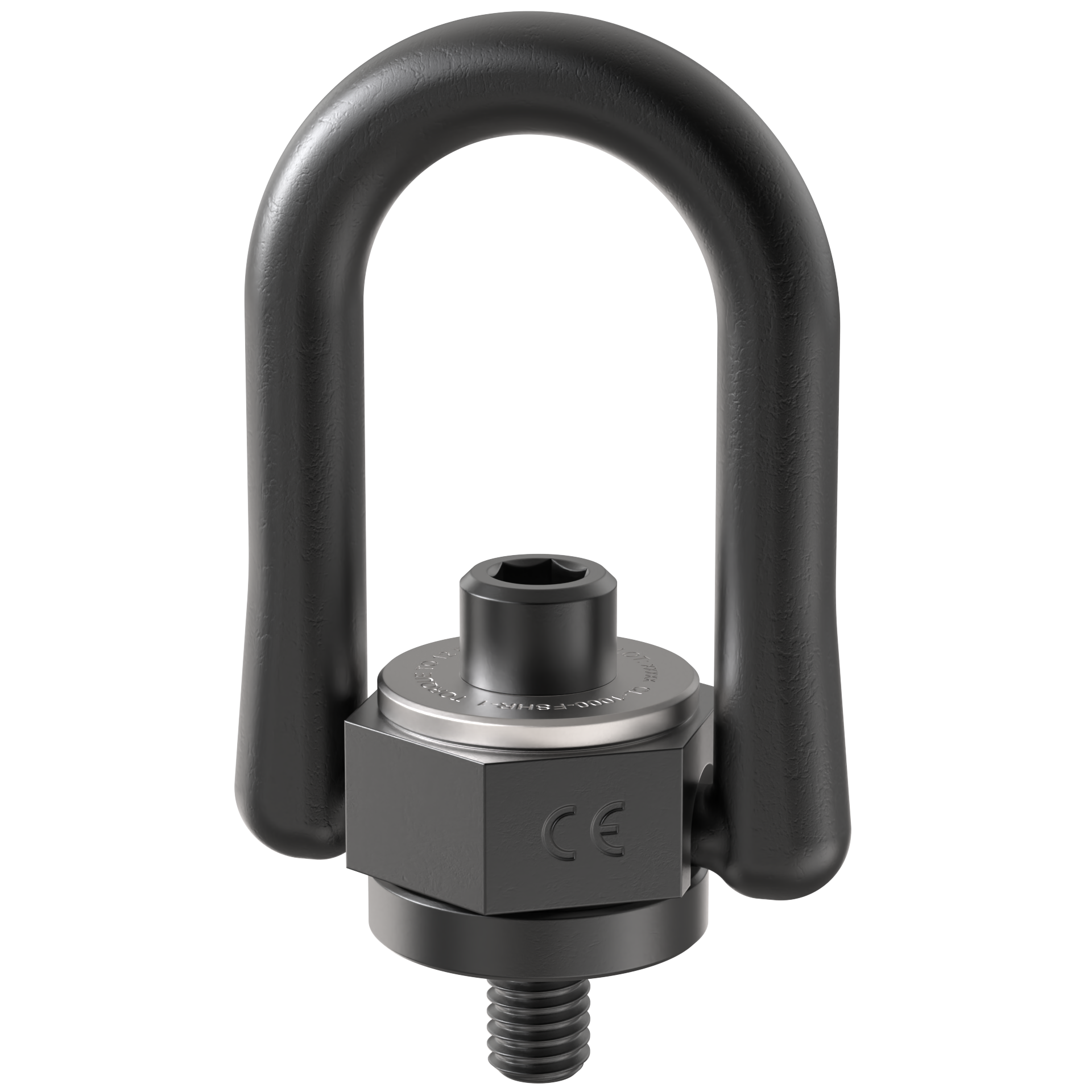

Forged Swivel Hoist Rings (Standard Ring )
Forged Swivel Hoist Rings (Standard Ring)
Carr Lane’s Forged Swivel Hoist Rings feature a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs and a 5:1 safety factor, many with a choice of bolt length. Complies with ASME B30.26 and CE.

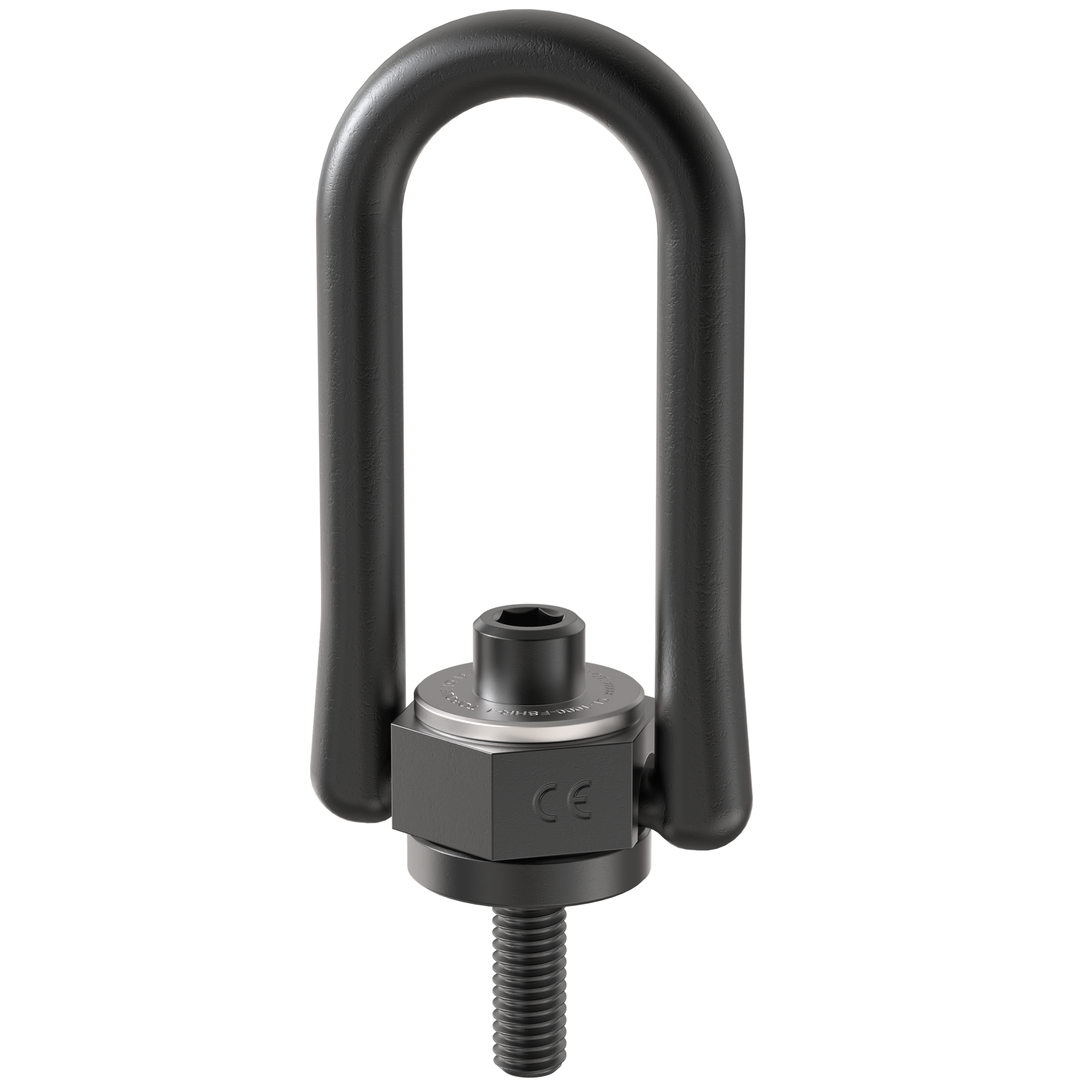

Forged Swivel Hoist Rings (Long Ring)
A long-ring version of our Forged Swivel Hoist Rings features a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Available with inch or metric threads in load capacities up to 10,000 lbs and a 5:1 safety factor, many with a choice of bolt length. Complies with ASME B30.26, CEN/TC 168 Reference EN 1677-1: 2000 Part 1 and 2006/42/EC.
Ball Lock Pins & Quick-Release Pins

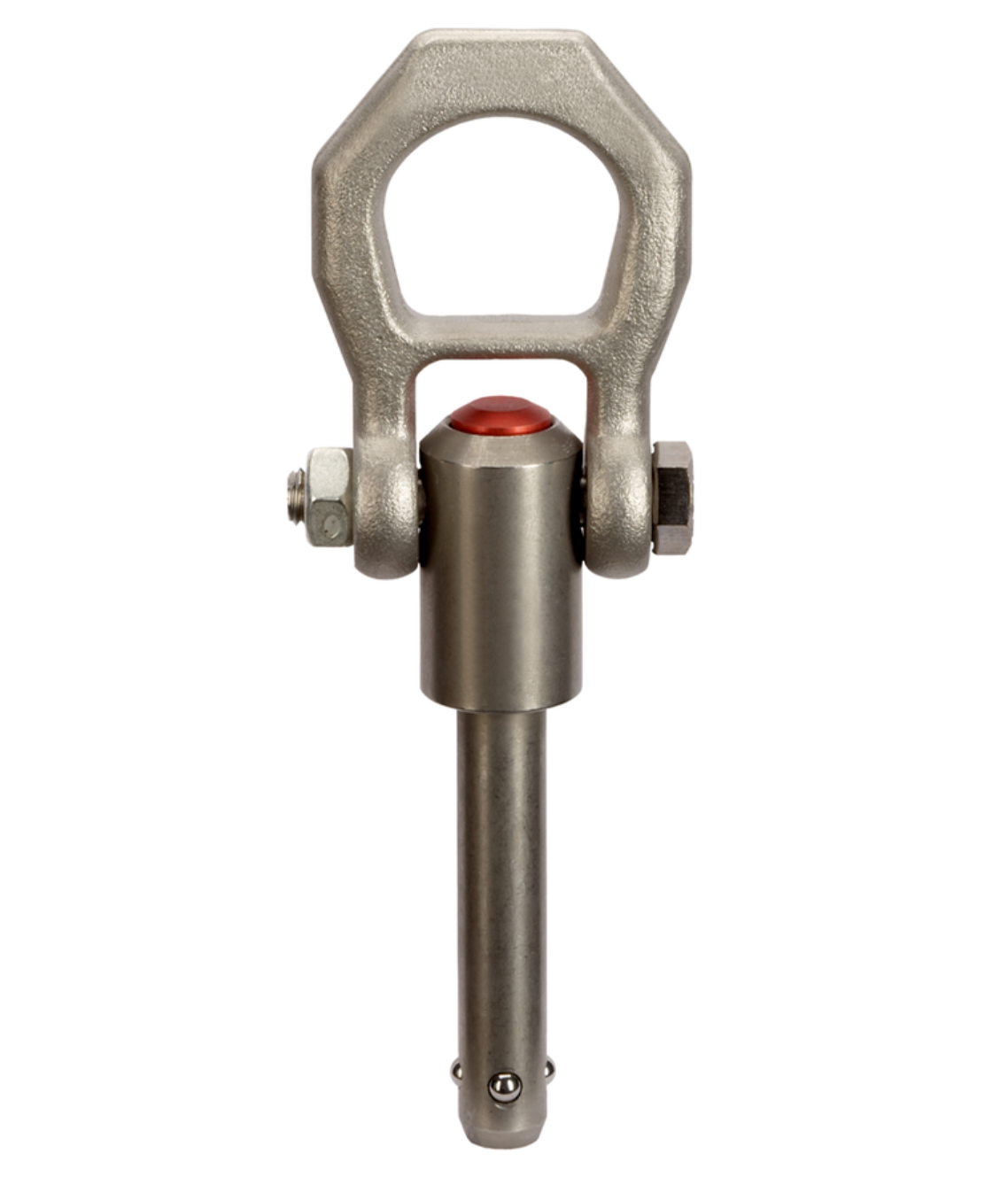

Lifting Pins (Stainless Steel)
Stainless Steel Lifting Pins are corrosion-resistant single-acting Ball Lock Pins with a solid, one-piece body and four balls for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. Available in shank diameters 1/4, 3/8, and 1/2", each in a choice of several standard grip lengths. Made in Germany.

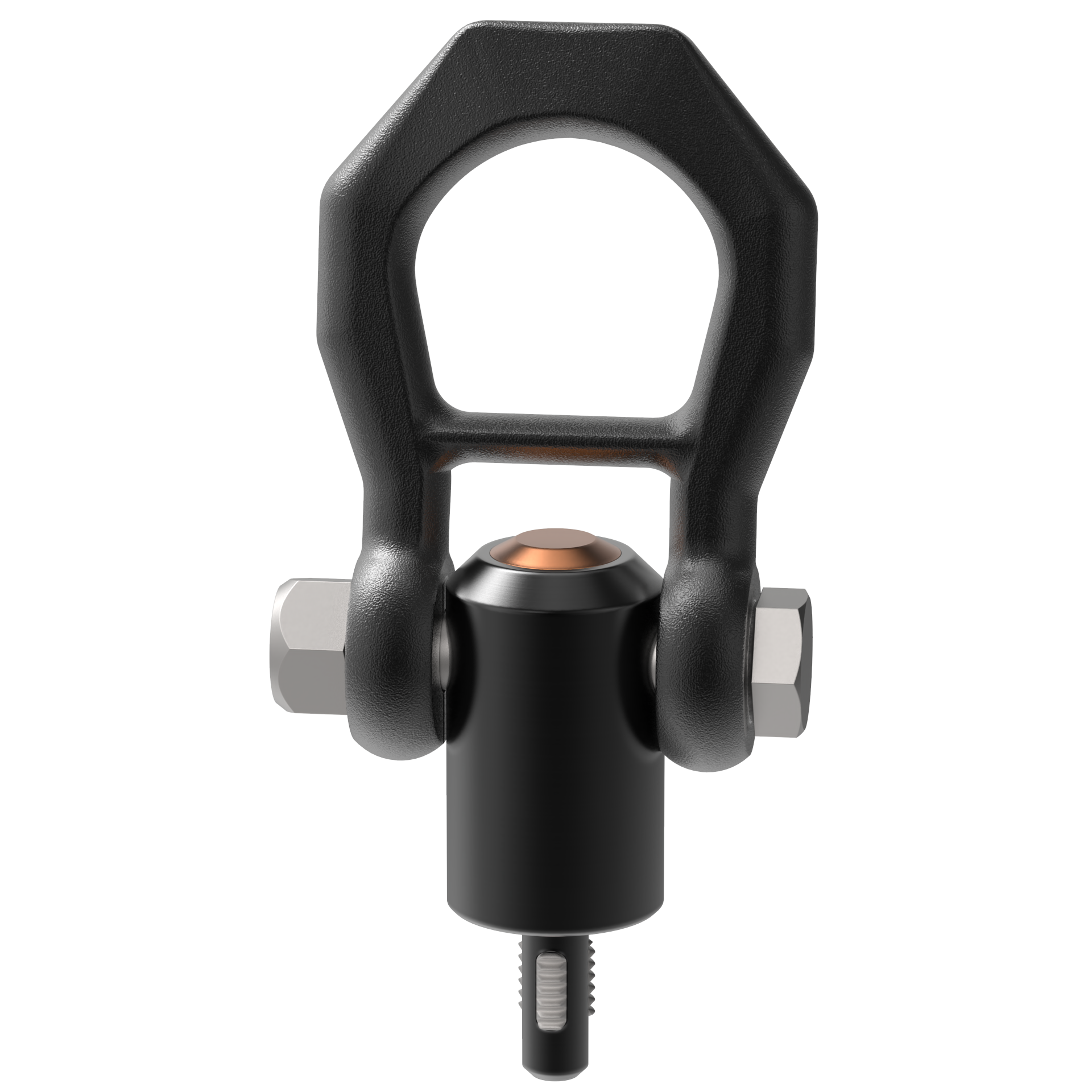

Threaded Lifting Pins
Threaded Lifting Pins are single-acting Ball Lock Pins with a solid, one-piece body with three threaded retractable elements for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. Threaded Lifting Pins are great for retrofitting fixtures with tapped holes. Available in both Steel and Stainless. Made in Germany.

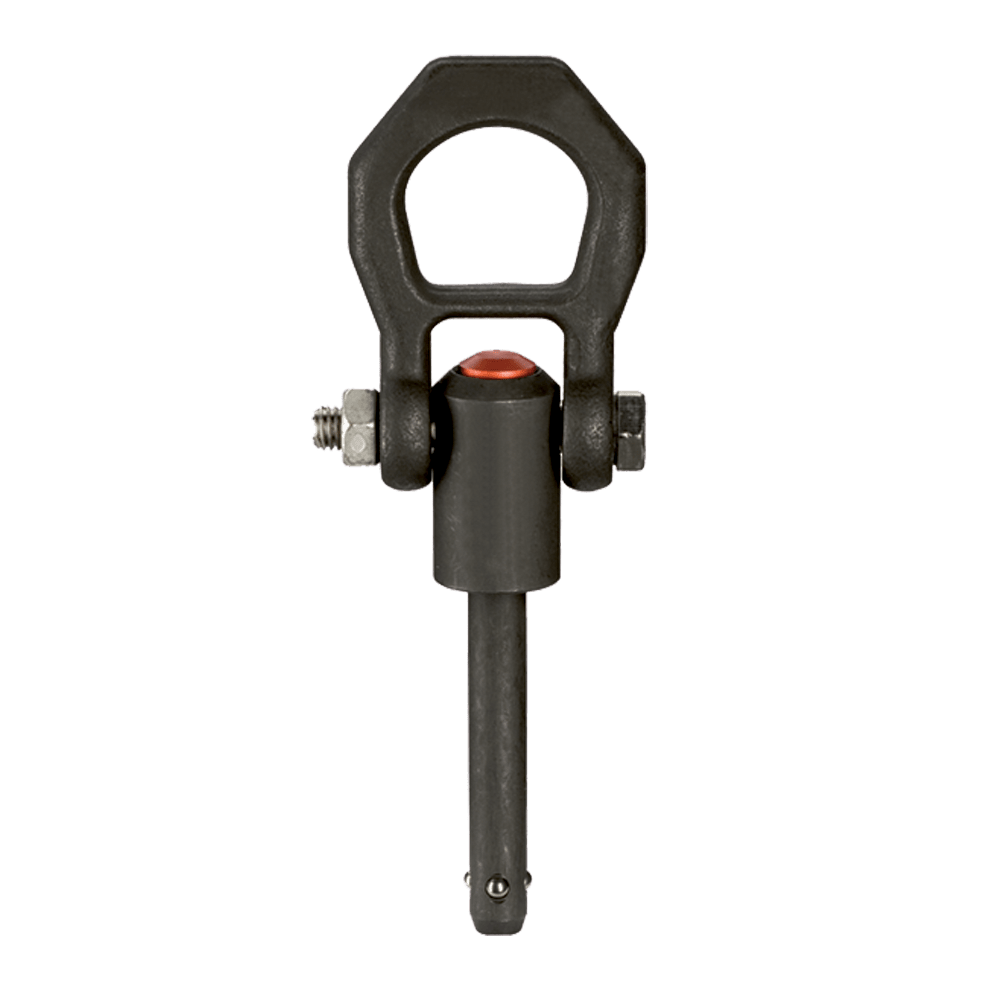

Lifting Pins (Alloy Steel)
Lifting Pins are single-acting Ball Lock Pins with a solid, one-piece body and four balls for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. The alloy-steel version shown here has a manganese phosphate finish that provides excellent lubricity and corrosion resistance. Available in shank diameters 1/4, 3/8, and 1/2", each in a choice of several standard grip lengths. Made in Germany.

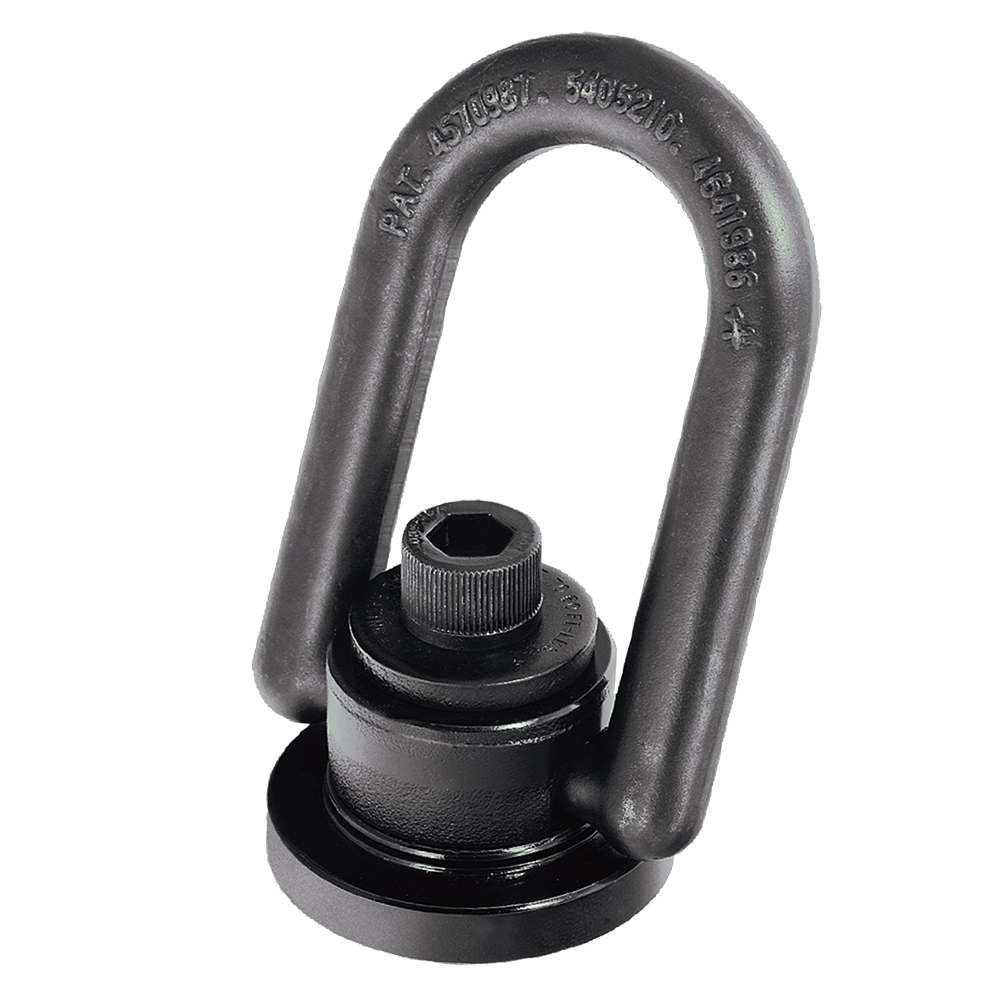

Heavy-Duty® Weld-Mount Swivel Hoist Rings
Heavy-Duty® Weld-Mount Swivel Hoist Rings
These Heavy-Duty® Swivel Hoist Rings are mounted by welding. Forged alloy-steel ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Safety factor = 5:1. Available with inch threads in load capacities up to 24,000 lbs. Patent no. 4,570,987, 4,641,986, 5,405,210, and other patents pending. Made in USA.
