Discover the assets of the new product range
The GRADUP range has been espacially developed by CODIPRO. GRADUP lifting rings offer improved WLL and have a special anti-corrosion coating.
Simple Swivel
SWIVEL EYE BOLT- SEB & FE.SEB
Metric thread: from M 8 to M 48 as standard;
For loads ranging from 0.40 t to 16.00 t .
360° pivot.
5:1 safety factor.
Available in both female and male version.

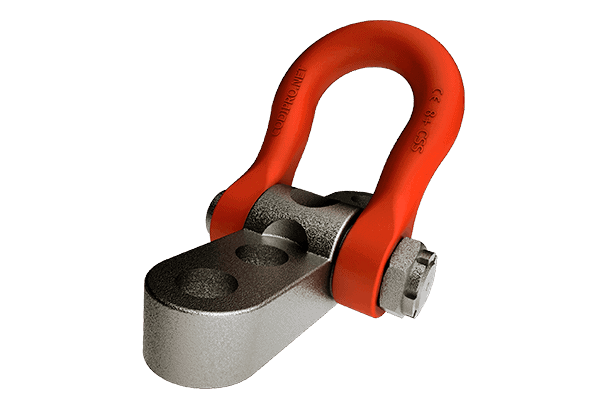

CSS CENTRAL LIFTING RING
Single point lift, easy for injection mold lifting application
Working load limit: up to 55 t
User manual available upon request
Double swivel
WELD-ON RINGS WE.DSR – WE.DSS
Weld-on lifting rings help to provide a welded anchpor point for lifting and securing loads of up to 10 tons.Welding applications are strictly reserved for a welder who has the required qualifications based on EN 287-1.Working load limit: 2.00 to 10.00 t / 4,400 lbs à 22,000 lbs. Instruction leaflet available upon request

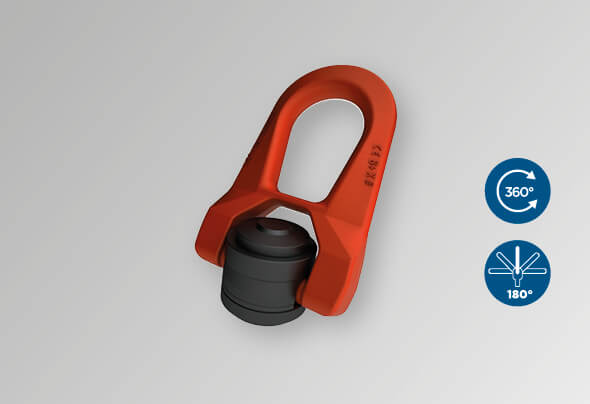

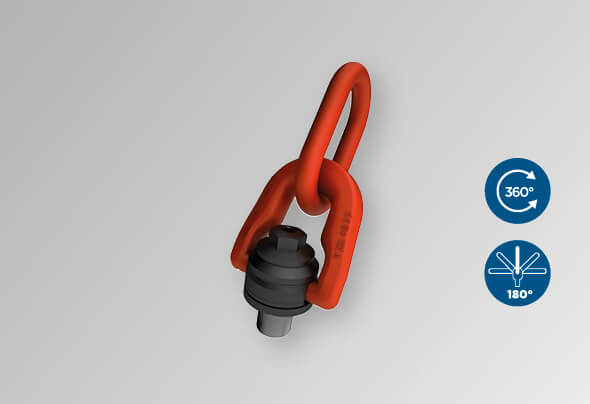

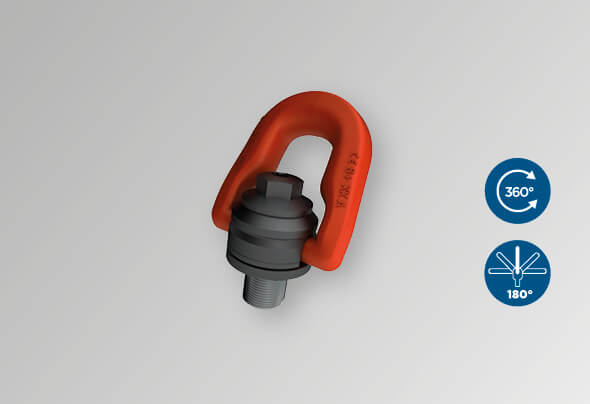

DOUBLE SWIVEL LIFTING RING - DSR & FE.DSR
Metric thread: from M 5 to M 42 as standard;
for loads ranging from 0.07 t to 9.00 t.
Double swivel ring with easy 180° and 360° rotation.
5:1 safety factor
Available in both female and male version.
DOUBLE SWIVEL LIFTING POINT DSP
Smaller footprint compared to a DSR model
Easy to use in tiny space
Safety factor 5:1

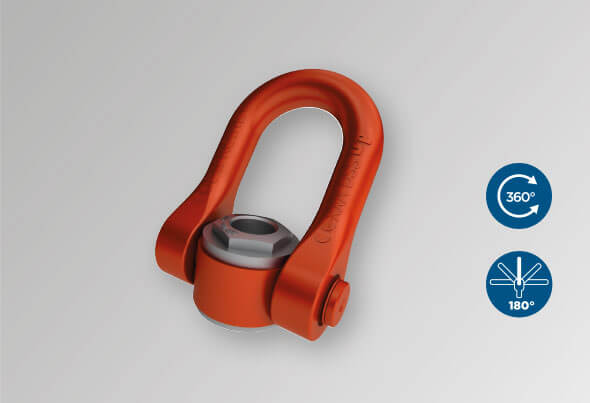

DOUBLE SWIVEL SHACKLE - DSS,FE.DSS,MEGA.DSS & GIGA.DSS
Metric thread: from M 24 to M 100 as standard;
for loads ranging from 4.50 t to 32.10 t.
Double swivel shackle with easy 180° and 360° rotation.
5:1 safety factor.
Available in both female and male version.

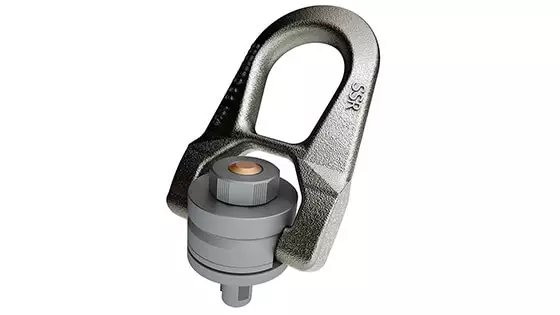

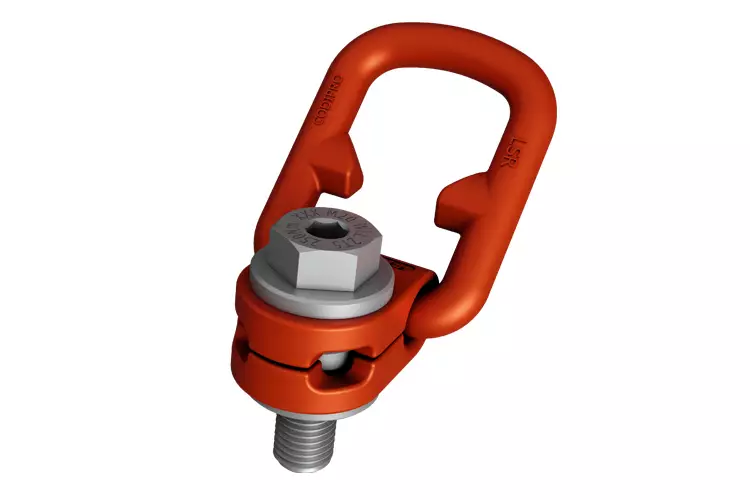

LSR Double swivel lifting ring
Standard metric threads available :
M 8 to M 20 - WLL of 0,30 t to 2,50 t
Safety factor
4:1
Individual traceability number
Lateral lifting:
Designed for flexible rotation under load
Wide shackle opening:
Easy compatibility with standard lifting accessories.
Patented
Triple Swivel

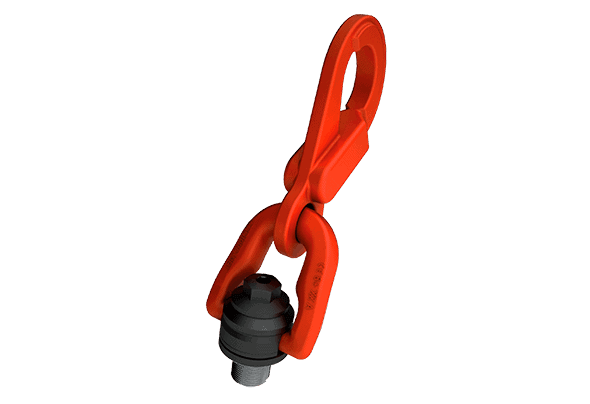

HOOK-TYPE LIFTING RING DSH
Metric thread: from M 8 to M 20
UNC thread: from UNC 5/16"-18 to UNC 3/4"-10
Safety factor 5
Long Bolts

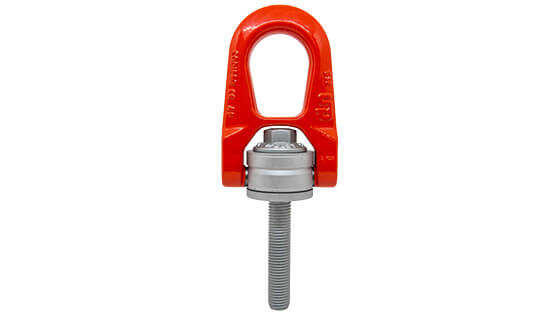

Double swivel lifting ring DSR with long bolt
Long bolt available and produced in a very short time.
Metric threads available:M24 to M64 - L1=300mm to 500mm
UNC threads available:3/8’’ UNC to 3/4 UNC – L1=8’’ to 10’’
Swiveling under load
360° rotation - 180° swivel
Safety factor4:1 and 5:1
Complies with the Machinery Directiv2006/42/CE
Manufactured in compliance with theEN 1677-1 norm
Individual traceability number

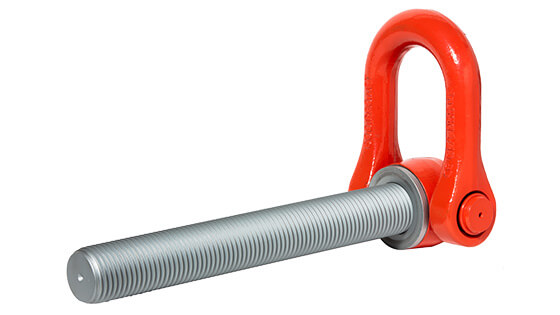

Double swivel lifting ring DSS with long bolt
Long bolt available and produced in a very short time
Metric threads available:
M24 to M64 - L1=300mm to 500mm
UNC threads available:
1’’ UNC to 1’’1/2 UNC – L1=10’’ to 12’’
Swiveling under load
360° rotation - 180° swivel
Safety factor
4:1 and 5:1
Complies with the Machinery Directive
2006/42/CE
Manufactured in compliance with the
EN 1677-1 norm
Individual traceability number

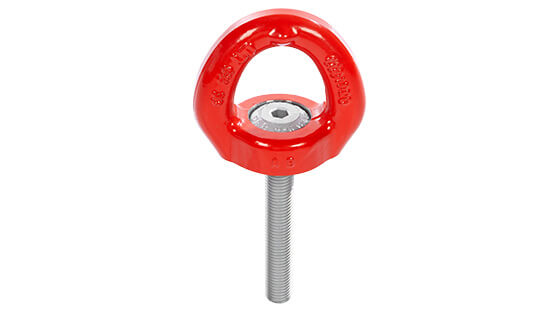

Swivel eye bolt SEB with long bolt
Long bolt available and produced in a very short time
Metric threads available:
M16 à M30 - L1=100mm à 170mm
Swiveling under load
360° rotation - 180° swivel
Safety factor
4:1 and 5:1
Complies with the Machinery Directive
2006/42/CE
Manufactured in compliance with the
EN 1677-1 norm
Individual traceability number
SS Double swivel

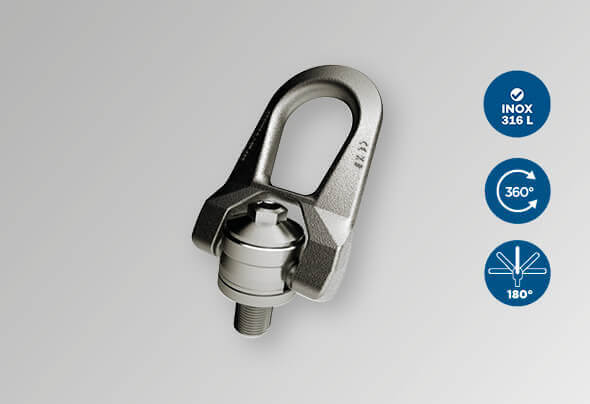

STAINLESS STEEL DOUBLE SWIVEL LIFTING RING SS.DSR – SS.FE.DSR
Available in both female and male version
316L stainless steel material
180° / 360° pivot, easy rotation
5:1 safety factor
Very short lead time

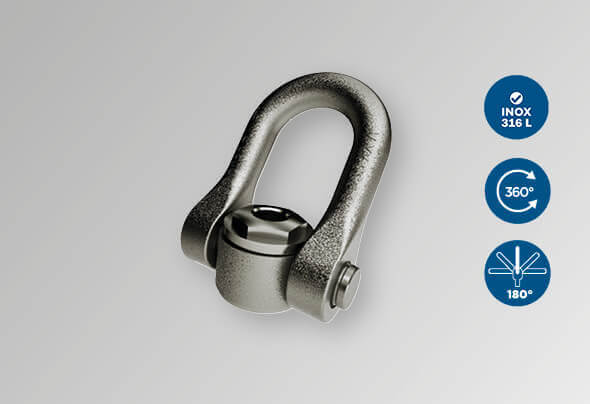

STAINLESS STEEL UNIVERSAL SWIVEL SHACKLE SS.DSS – SS.FE.DSS
Available in both female and male version
316L stainless steel material
180° /360° pivot, easy rotation
5:1 safety factor
Very short lead time
SS Simple Swivel

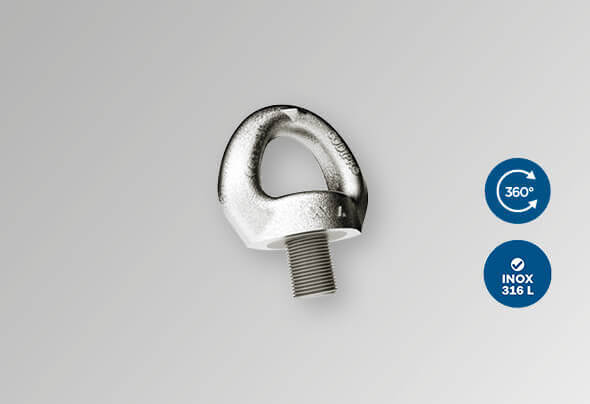

STAINLESS STEEL SINGLE SWIVEL LIFTING RING SS.SEB
Available in both female and male version
316L stainless steel material
360° pivot, easy rotation
5:1 safety factor
Very short lead time
Quick Lift Rings
Quick Lift Ring - .QL.SDR
Standard metric and UNC threads available 8 to M 30
Safety factor5:1
Swivelling under load
360° rotation - 180° swivel
Complies with the Machinery
Directive2006/42/CE
Manufactured in compliance with
the EN 1677-1 norm
Individual traceability number
Quick Lift Ring in stainless steel SS.QL.SDR
Standard metric and UNC threads available:
M 8 to M 24
Safety factor 5:1
Stainless-steel 316L
Swivelling under load
360° rotation - 180° swivel
Complies with the Machinery
Directive 2006/42/CE
Manufactured in compliance with
the EN 1677-1 norm
Individual traceability number
Codipro Fall-proof anchor point
FALL-PROOF ANCHOR POINTS PE.SEB – SS.PE.SEB
PE.SEB anchor points are not lifting rings in the conventional sense. They are fixing points for fall protection equipment systems (PPE – Personal Protective Equipment).
PE.SEB rings can be permanently attached to a structure and thus be used as PPE.
ISO thread M 12 to M 24. Available in zinc-plated steel or stainless steel.
SWIVEL LIFTING RING FOR OFFSHORE
CODIPRO is offering two separate “offshore” ranges which are covered by the “TAS00001ZG Type Approval” certificate
Every ring has its own individual traceability code for thorough tracking and is marked with a WLL (Working Load Limit) and the CODIPRO name.

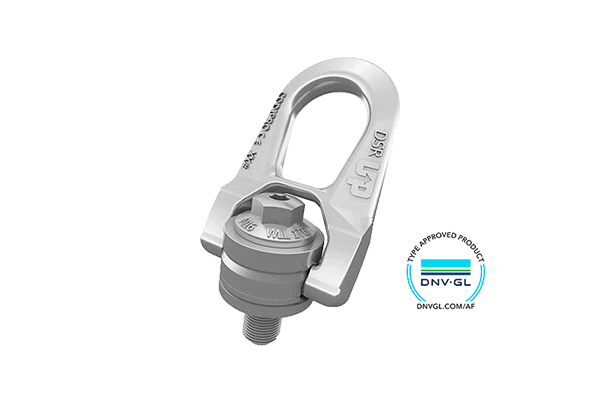

DOUBLE SWIVEL LIFTING RING FOR OFFSHORE DSR-OS.DSR
Brand new swivel lifting rings.
Standard rings of with total zinc lamellar coating
5:1 safety factor

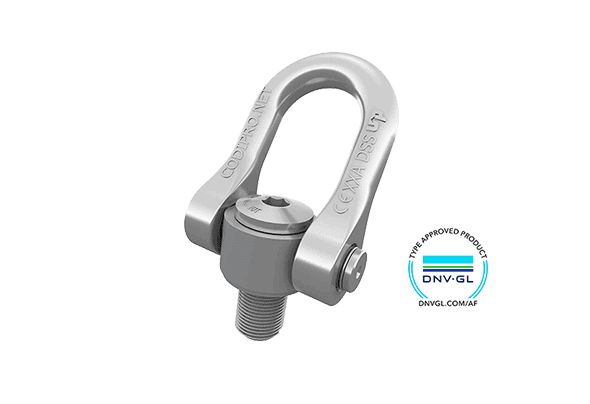

UNIVERSAL DOUBLE SWIVEL SHACKLE FOR OFFSHORE DSS-OS.DSS
Brand new swivel lifting rings.
Standard rings of with total zinc lamellar coating
5:1 safety factor
