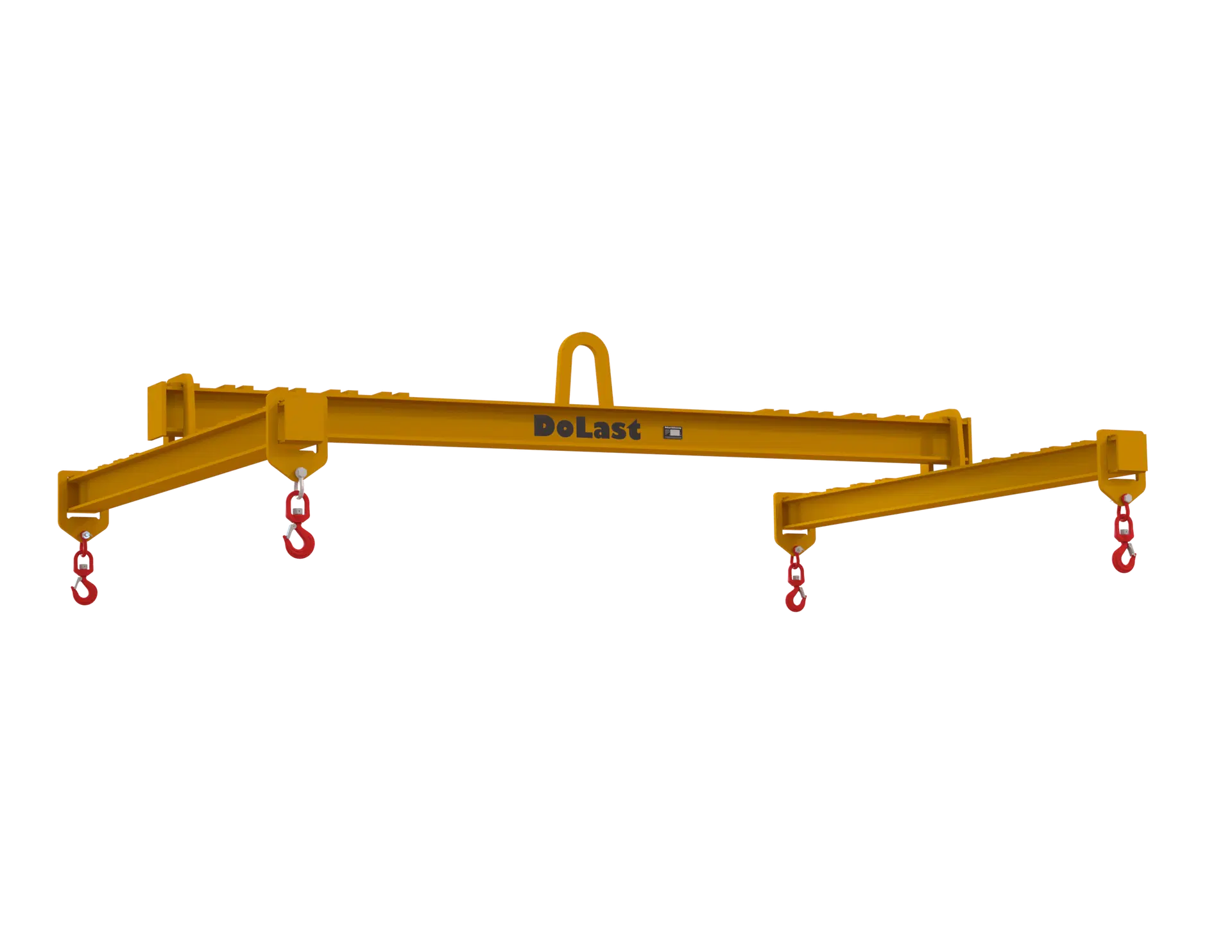

DoLast Do316 H-Beam Lifting Beam, adjustable, Lifting Capacity: 1000 kg

Do316 – Maximum Flexibility for Wide Loads
Want to lift loads safely and with full adjustability? Then the adjustable H-Beam Lifting Beam Do316 is the perfect tool for the job. With an adjustable length from 1,000 to 2,000 mm and a width from 500 to 1,000 mm, this lifting beam adapts seamlessly to different geometries and load situations – whether in mechanical engineering, manufacturing, or on construction sites.

Adjustable in Two Directions – In No Time at All
Thanks to its smart design, the Do316 can be flexibly adjusted both lengthwise and crosswise. For you, that means: less retooling, more time for what really matters. Four rotatable eye swivel hooks (Type WHK) ensure secure and twist-proof attachment – even for components that are difficult to grip. The robust H-shaped construction distributes the load evenly and ensures smooth and controlled lifting.

Technical Specifications at a Glance

• Model: Do316

• Design: Adjustable H-Beam Lifting Beam

• Lifting Capacity: 1,000 kg

• Adjustable Length: 1,000 – 2,000 mm

• Adjustable Width: 500 – 1,000 mm

• Lifting Points: 4x Eye Swivel Hooks WHK

• Material: Steel, painted yellow

• Application: Versatile use for large-surface loads

• Standard: DIN EN 13155

The Smart Solution for Complex Lifting Tasks
Whether you're dealing with varying component sizes, uneven load distributions, or difficult attachment points – the Do316 keeps you flexible at all times. Its adjustable geometry makes it a true all-rounder when it comes to handling wide and bulky loads.

Need a special colour, different hooks, or a custom design?
Talk to us – we’ll build your lifting beam to measure.
