DoGiga H Heavy Duty HMPE Round Sling Series WLL 70000 kg to 200000 kg
Product Information
Maximum performance with minimum weight – the DoGiga H round sling WLL 70000 kg to 200000 kg
Anyone working in the heavy duty sector needs a round sling that delivers uncompromising strength, maximum safety and handling that makes daily operations noticeably easier. The DoGiga H round sling with core and sheath made of UHMW PE Ultra High Molecular Weight Polyethylene sets new standards. It is lightweight, compact and highly efficient, while offering outstanding resistance to abrasion and mechanical stress thanks to its innovative sheath construction.
Extremely strong. Surprisingly compact. Precise handling.
Compared to conventional polyester round slings PES, the DoGiga H offers clear advantages
UHMW PE in both core and sheath provides double high performance fibre technology for maximum lifting capacity and exceptional abrasion resistance
Up to 60 percent lighter than comparable PES round slings, ideal for long operating periods and frequent handling
Compact design that can be safely used even in smaller crane hooks
Very low elongation for precise and controlled lifting movements, similar to a grummet rope

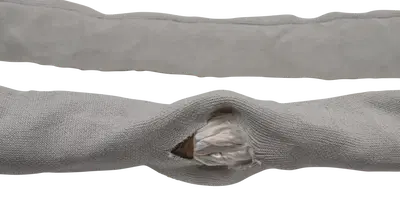

Double sheath protection that reliably protects the load bearing yarn even if the outer layer is damaged
Technical data at a glance
Lifting capacity WLL 70000 kg to 200000 kg
Useful lengths available according to requirement
Core material UHMW PE high performance fibre
Sheath material UHMW PE high performance fibre
Safety factor 7
Elongation very low
Temperature range minus 40 °C to plus 70 °C
Standard in accordance with DIN EN 1492 2

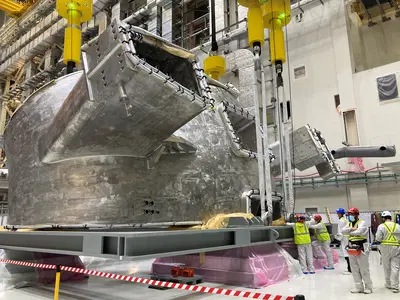

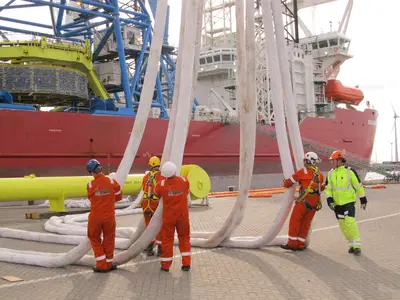

Typical applications offshore operations, heavy lift logistics, power plant construction, special machinery and industrial projects
More protection. More order. More efficiency.
Even a high performance round sling like the DoGiga H benefits from additional abrasion protection such as PU sleeves or textile edge sleeves. For improved organisation and readiness, sling stands keep round slings, crane slings and lifting slings clean, sorted and ready for use at all times.
With the DoGiga H round sling, you rely on uncompromising safety, maximum lifting performance and a sheath material that consistently utilises the advantages of UHMW PE for the most demanding heavy lifting operations.
